Multimeter setup

Step 2.2: Create the Combined Script for Two TTL Heads​

Combine individual scripts so Tasmota reads data from two meters.

Update the Meter Count​

>M 1
to
>M 2

(The number after M shows how many meters are connected — 2 for two meters.)

Add the Second Meter Line​

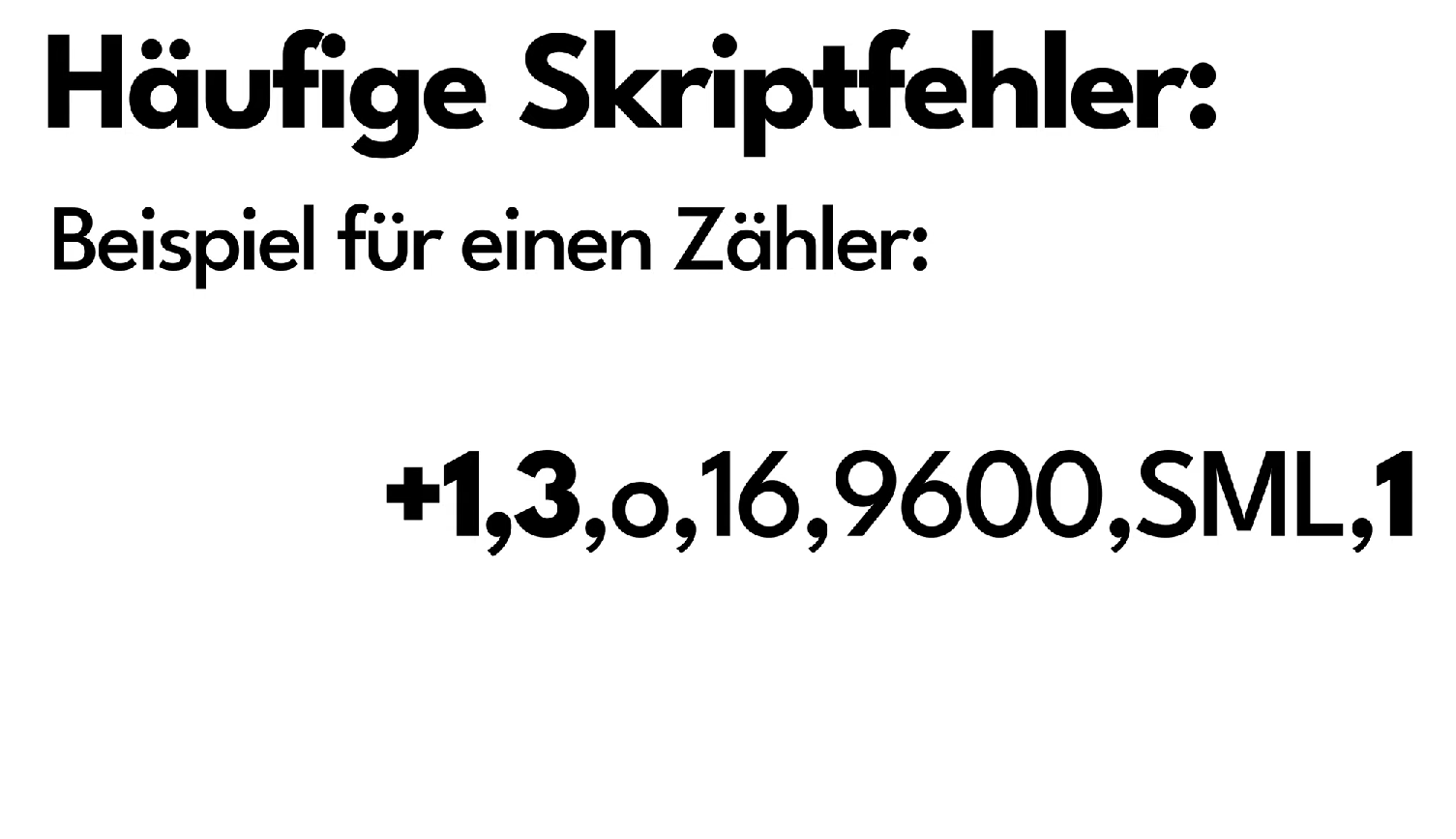

You already have this line for the first meter:

+1,3,s,16,9600,MT175,1
TTL Cable Color Codes

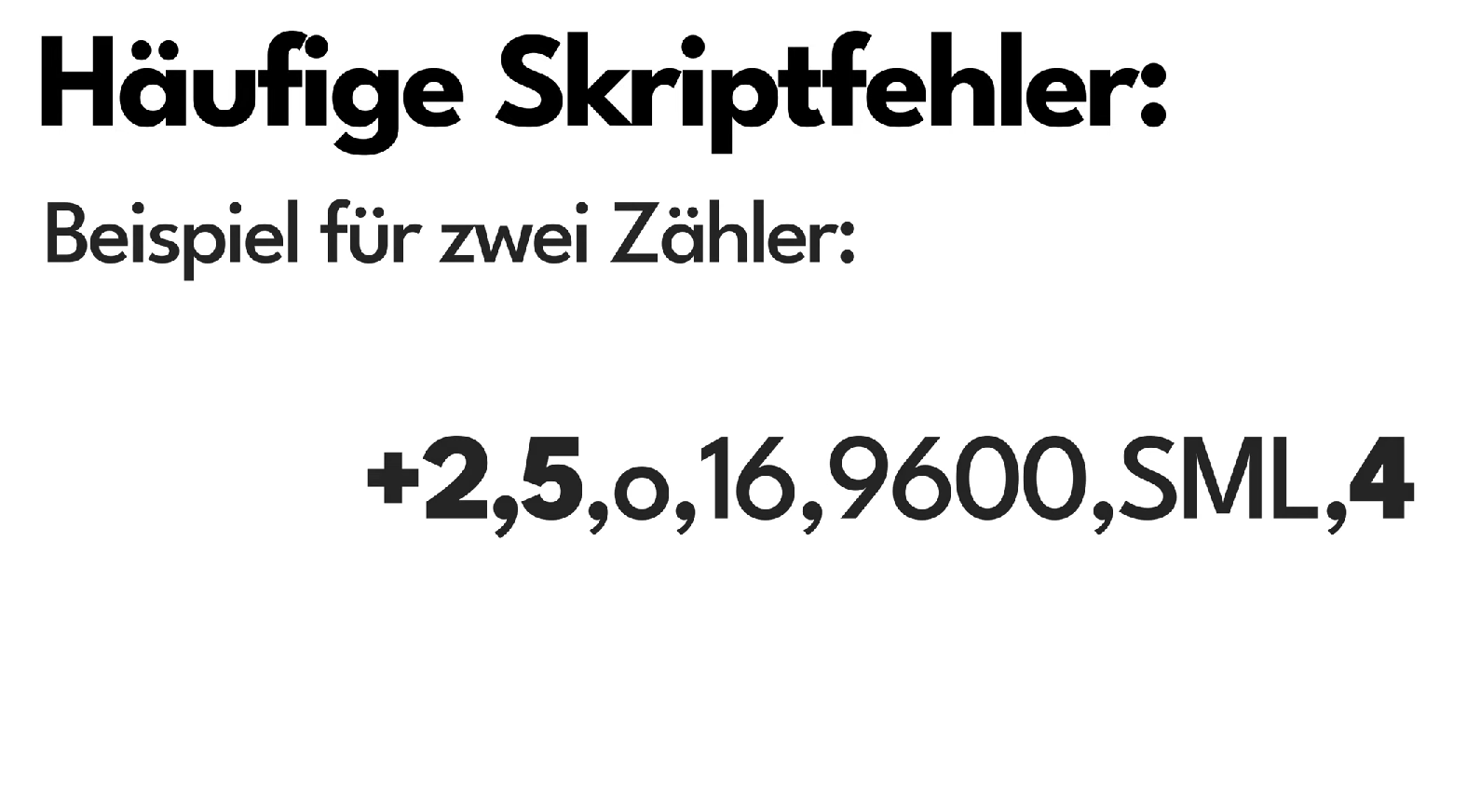

+2,5,s,16,9600,MT175,4
TTL Cable Color Codes

+2 = second meter, 5/4 = IO pins.

Copy Data Lines and Adjust Meter Number​

Copy first meter’s lines, change 1, → 2, and update names (e.g., E_in → E_in2).

2,77070100010800ff@1000,Verbrauch,kWh,E_in2,3
2,77070100020800ff@1D,Einspeisung,kWh,E_out2,3
2,77070100100700ff@1,akt. Leistung,W,Power2,0

Final Combined Script​

>D
>B
->sensor53 r
>M 2
+1,3,s,16,9600,MT175,1
+2,5,s,16,9600,MT175,4
1,77070100010800ff@1000,Verbrauch,kWh,E_in,3
1,77070100020800ff@1000,Einspeisung,kWh,E_out,3
1,77070100100700ff@1,akt. Leistung,W,Power,0
2,=h--
2,77070100010800ff@1000,Verbrauch,kWh,E_in2,3
2,77070100020800ff@1D,Einspeisung,kWh,E_out2,3
2,77070100100700ff@1,akt. Leistung,W,Power2,0
#

Next Step​

After successful mounting, continue with the WiFi setup.
