Battery Replacement
The energieleser.node is designed to stay in energy-saving mode almost all of the time, becoming active only briefly to take a reading or send a report. On battery power the Node takes a reading every 15 minutes; the batteries then typically last more than 5 years.
We give no warranty on battery life.
Other factors that affect battery life:
- How many ports are active
- Whether the stromleser.ttl or the wärmeleser is used (Ports 1 + 2 draw slightly more power during a reading than the other sensors on Ports 3 + 4)
- Battery choice and quality
When to replace
The Node does not report its battery level to the app, so replace your batteries as a precaution in good time (see typical battery life above), or as soon as the Node stops reporting.
How to replace
Your Node supports two battery options — replace with the same type you're currently using:

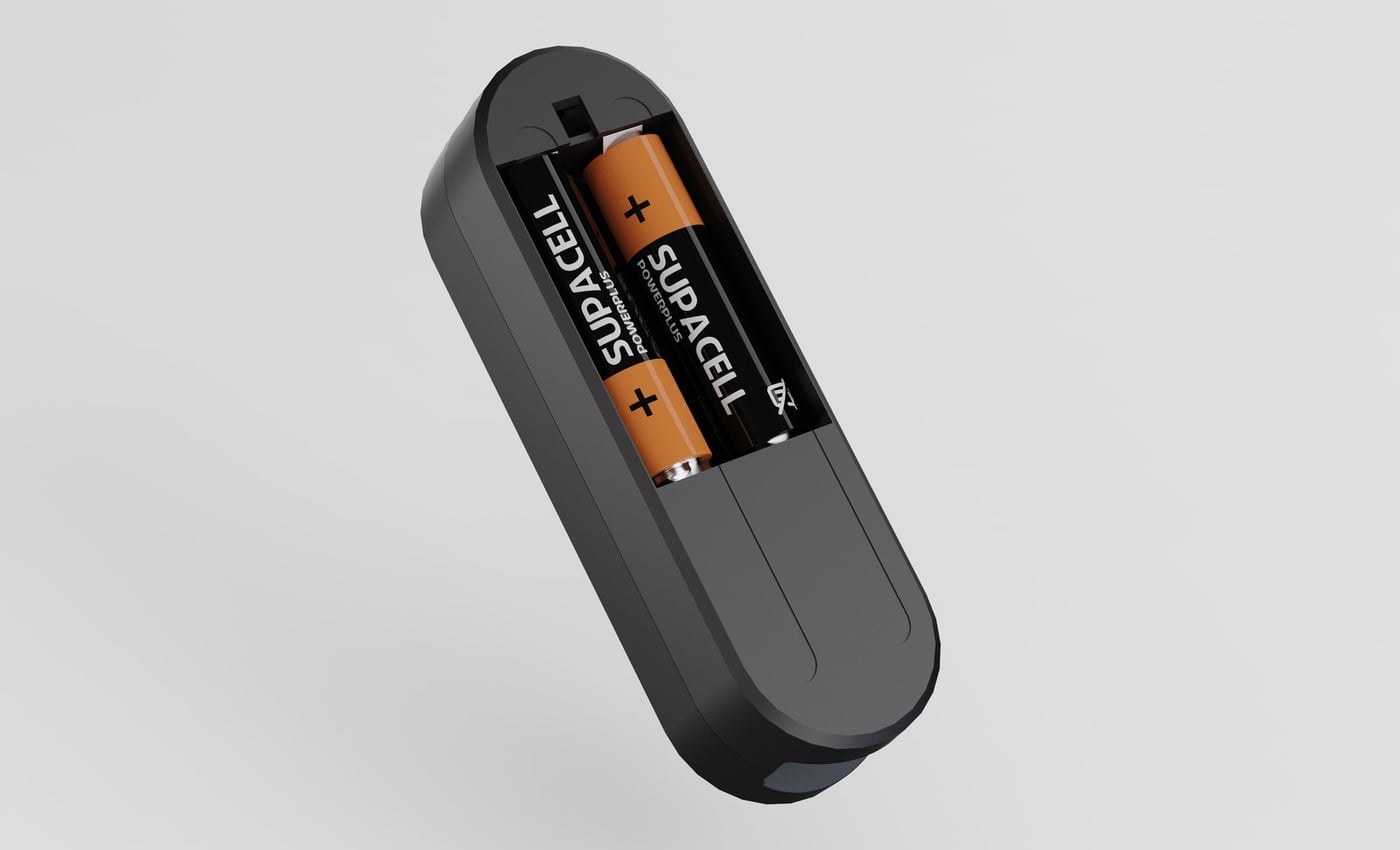

- Open the battery compartment on the back of the device.
- Remove the old battery/batteries.
- Insert either two fresh AA batteries, or a fresh long-lasting battery plus a battery dummy, matching the + and – symbols shown inside the compartment.
- Close the compartment.
Your port assignments are kept safely through a battery change — you won't need to repeat the port assignment afterwards. The counts recorded by the sensors (for gas, water and the S0 sensors) are not stored permanently, though: after a full power loss they restart from the configured starting value, so check the reading in the app afterwards.
Next step
See Cleaning the Sensor for other routine maintenance.
