wasserleser Overview

Welcome to the wasserleser documentation! Here you'll find all the information you need to install, configure, and optimally use your wasserleser.

User Manual​

The complete user manual is available here as a PDF:

Installation Video​

Watch our step-by-step installation video:

wasserleser Installation Video

What is wasserleser?​

The wasserleser makes your water meter smart – without requiring any modifications to the meter itself.

How it Works​

The wasserleser uses optical detection of the rotating metal disc above the red wheel in your water meter. This allows your water consumption to be captured precisely and reliably in digital form.

Key Features​

  • Compatibility: Works with water meters that have a metal disc above the red wheel
  • Easy Installation: Simple mounting with adapter or adhesive metal plate
  • Secure Attachment: Direct mounting on the meter with included accessories
  • Smart Home Integration: Compatible with common smart home systems
  • Real-time Data: Instant consumption information in the app
  • Leak Detection: Automatic alerts for continuous water flow
  • Timer Function: Set warnings for time or volume thresholds

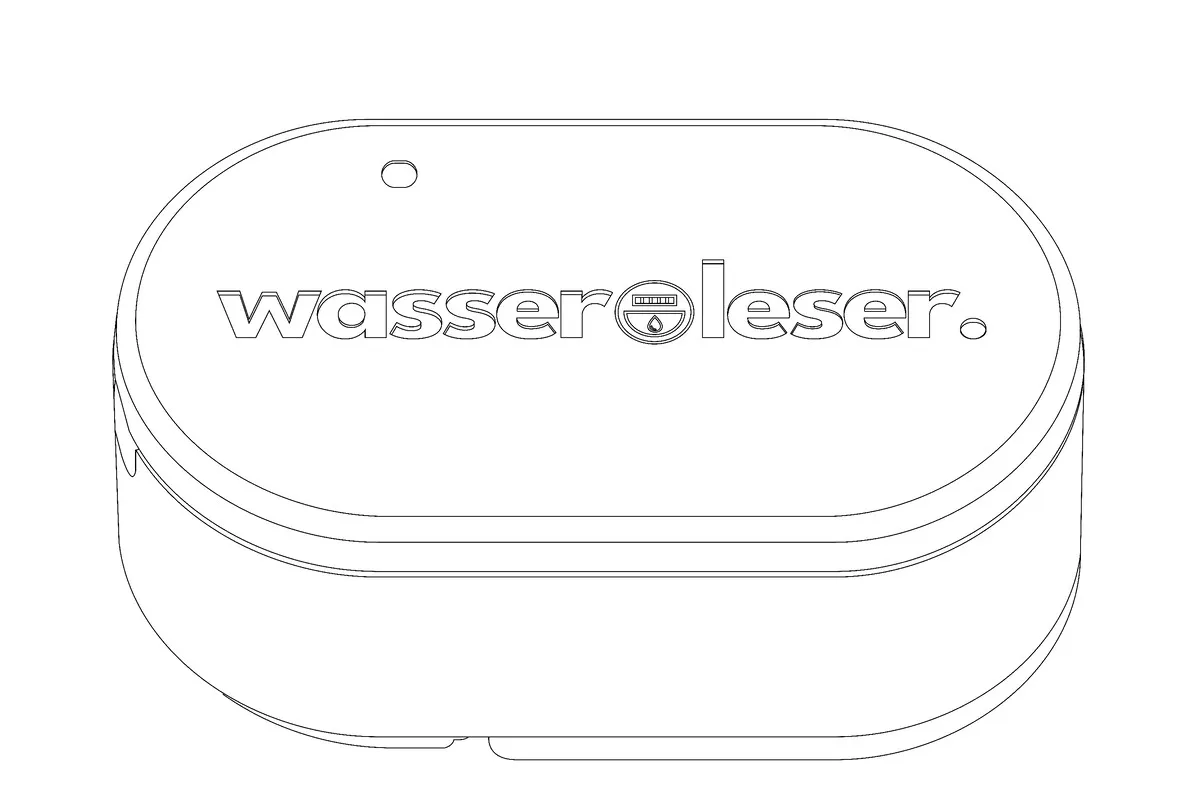

wasserleser Device

Documentation Index​

Getting Started​

Installation​

App Setup​

Configuration​

App Setup (Extended)​

Leak Detection​

  • Overview - Using the leak detection feature

Maintenance​

Technical Specifications​

  • Device Name: wasserleser
  • Dimensions (L×W×H): 40mm × 22mm × 16mm
  • Weight: 20g
  • Operating Temperature: -20°C to 50°C
  • Frequency Range: 2.4GHz
  • Maximum Power: 20dBm
  • Input Voltage: 5V (USB-C)
  • Connectivity: WiFi 2.4GHz, Bluetooth
  • Certification: CE

Safety and Compliance​

The wasserleser is designed for safe, non-invasive water meter monitoring:

  • CE certified
  • Low voltage operation (USB powered)
  • No interference with water meter functionality
  • Approved for residential use
  • Not waterproof - indoor use only

EU Conformity Declaration​

nineti GmbH hereby declares that the "wasserleser" radio device complies with the following directives:

  • 2014/53/EU: Radio Equipment Directive
  • 2014/30/EU: EMC Directive (Electromagnetic Compatibility)
  • 2011/65/EU: RoHS Directive

Standards: EN IEC 61326-1:2021

The full version of the EU declaration of conformity is available at: https://stromleser.de/pages/eu-konformitatserklarung

Operating Conditions
  • Do not use in very hot or humid environments
  • Not suitable for outdoor use in rain or snow
  • Temperature range: -20°C to 50°C
  • Keep dry at all times
  • Avoid contact with water during operation
  • Store in a dry environment

Documentation Version​

This documentation is version 1.1 (September 2025). For the latest version, visit: https://link.stromleser.com/energieleserdocs

Quick Start​

  1. Check Compatibility - Make sure your meter is supported
  2. Installation - Mount the wasserleser on the meter
  3. App Connection - Set up the connection
  4. Configuration - Configure the parameters

Disposal and Recycling​

Electronic Components Disposal​

The product symbol indicates that this product must not be treated as unsorted residual waste and must be collected separately. If you live in the EU or another European country with separate collection systems for electrical waste:

  • Dispose of the product properly at a recycling collection point
  • Help prevent environmental and public health hazards
  • Contribute to conserving natural resources through recycling

Packaging Disposal​

The packaging is made of environmentally friendly materials that can be disposed of at local recycling centers. Proper disposal helps prevent potential hazards to the environment and public health.

Manufacturer Information​

nineti GmbH

  • Address: Mozartstr. 55, 70180 Stuttgart, Germany
  • Phone: +49 (0) 711 60192327
  • Email: info@energieleser.de
  • Managing Directors: Nemo Fink, Nicco Fink, Tibor Hofmann
  • Register Court: Amtsgericht Stuttgart
  • Register Number: HRB 783815
